Profit Analyzer
What is this?
The Profit Analyzer breaks down your profitability across different dimensions -- by price range, vendor vs. non-vendor SKUs, department, class, or velocity code. It shows you where your margins are strong and where they need attention, helping you make informed pricing decisions.
Opening the Profit Analyzer
- Toolbar: Click the "Show Profit Analyzer" button (right side of toolbar)
- Menu: Accessible via the toolbar buttons

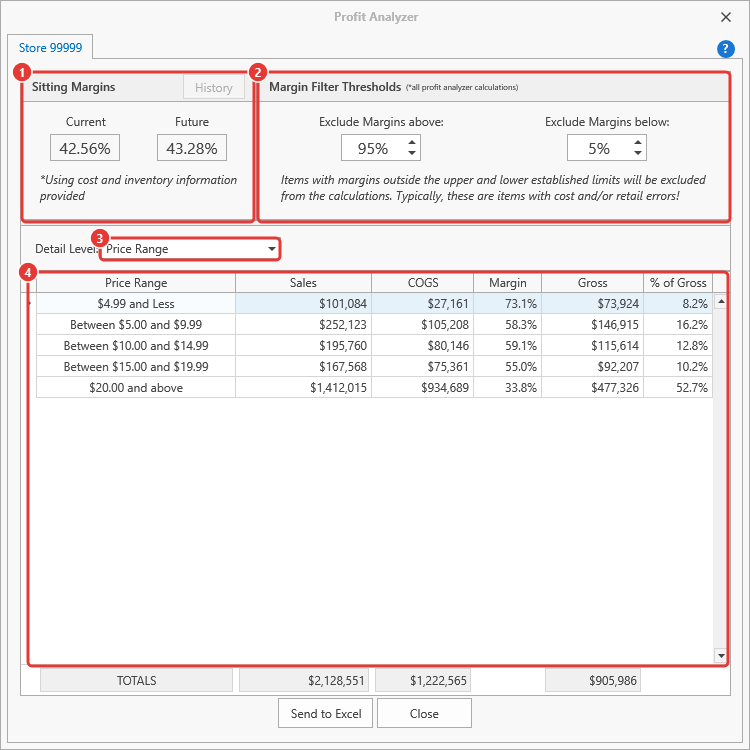

Understanding the View

- Sitting Margins · 2. Margin Filter Thresholds · 3. Detail Level · 4. Data grid
Detail Level Filter
At the top, a "Detail Level" dropdown controls how the data is grouped:
| Filter | Groups By |
|---|---|
| Price Range | Five price brackets: "$4.99 and Less", "$5.00-$9.99", "$10.00-$14.99", "$15.00-$19.99", "$20.00 and above" |
| Vendor/Non-Vendor Skus | " Skus" vs. "Non- Skus" (uses your primary vendor name) |
| Department | "Dept " for each department |
| Class | "Class " for each class |
| Velocity Code | "Velocity " for each velocity code |
Tabs
When analyzing multiple stores or store groups, the Profit Analyzer creates one tab per store or group. Tab headers show "Store " or "Group " depending on your configuration. When multiple tabs exist, a TOTAL summary tab is automatically inserted as the first tab, aggregating data across all stores/groups.
If you are analyzing a single store, only one tab appears.
Data Grid
Each tab shows a grid with these columns:
| Column | Format | Description |
|---|---|---|
| (Group Name) | Text | The grouping dimension (price range, department, etc.) |
| Sales | Currency ($0) | Total sales for this group |
| COGS | Currency ($0) | Cost of Goods Sold |
| Margin | Percentage (0.0%) | Gross margin percentage: (Gross / Sales) x 100 |
| Gross | Currency ($0) | Gross profit: Sales - COGS |
| % of Gross | Percentage (0.0%) | This group's share of total gross profit |
A TOTALS summary row at the bottom shows:
- Count of groups
- Sum of Sales, COGS, and Gross
- Overall margin and gross percentage
Sitting Margins
A "Sitting Margins" section shows:
- Current Margin -- The margin based on current retail prices (percentage, read-only)
- Future Margin -- The margin based on calculated future prices (percentage, read-only)
The difference between Current and Future margin reflects the impact of your price changes -- COGS stays the same, only the price changes. If a SKU has no Future Price set (zero), its Current Price is used in the future calculation as well.
Note: "Using cost and inventory information provided" -- margins are weighted by 12-month sales history.
Margin Filter Thresholds
A "Margin Filter Thresholds" section lets you exclude outliers:
| Field | Description |
|---|---|
| Exclude Margins above | Spin edit (0-100%). SKUs with margins above this are excluded from calculations |
| Exclude Margins below | Spin edit (0-100%). SKUs with margins below this are excluded |
Help text: "Items with margins outside the upper and lower established limits will be excluded from the calculations. Typically, these are items with cost and/or retail errors!"
Tip: Use the margin thresholds to filter out data entry errors. An item with a 99% margin or -50% margin is likely a cost or price error, not a real product.
Exporting to Excel
Click "Send to Excel" to export the current tab's data. The export includes:
- Row 1: Main Table Name
- Row 2: Analysis header text
- Row 4: SQL WHERE clause used
- Row 6: Current Sitting Margin
- Row 7: Future Sitting Margin
- Row 9+: Data grid contents
The file is saved to: {ExportPath}\Excel\ProfitAnalyzer_{TabName}_{DateTime}.xlsx
After export, you'll be asked: "Would you like to open this file in Excel?"
Buttons
| Button | Action |
|---|---|
| Send to Excel | Export current tab to Excel |
| Close | Close the Profit Analyzer |
Common Questions
Q: Why do my margins look wrong? A: Check the margin filter thresholds. If set too wide, outlier products with data errors can skew the averages. Also verify that cost data is current.
Q: What's the difference between "Margin" and "% of Gross"? A: Margin is the profit percentage for that group (Gross/Sales). % of Gross is how much of your total gross profit comes from that group. A group can have high margins but low % of Gross if its sales volume is small.
Q: Can I analyze just a subset of my products? A: Yes. Apply selections/filters in the main window before opening the Profit Analyzer. It analyzes the currently filtered dataset.
Q: How often should I run the Profit Analyzer? A: Before and after executing a pricing strategy. Compare the sitting margins to see the impact of your price changes.
