System Diagnostics
What is this?
Not on a menu in the current release. The System Diagnostics window exists in Margin Master but no menu item opens it; support staff reach it during a support session. The everyday diagnostics are Help > Data Diagnostics (table counts and ages), Help > Missing Index Recommendations and Help > Launch Diagnostics (password protected) - see Data Diagnostics and Missing Index Recommendations.

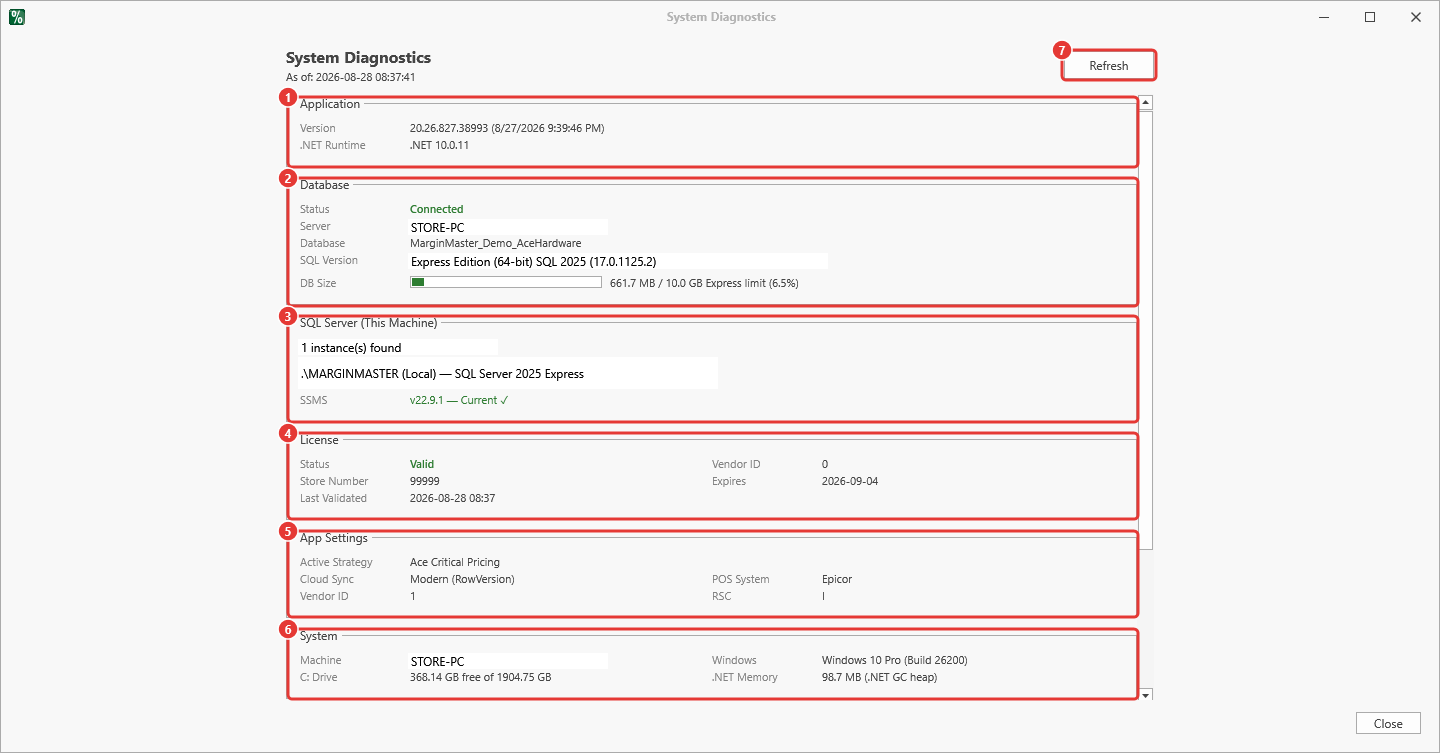

The System Diagnostics window collects information about your Margin Master installation, database, license, and computer in one place. Use it when troubleshooting a problem yourself, or to quickly gather information before contacting support.
Opening System Diagnostics
From the main window menu bar, click File > Utilities > System Diagnostics.
The window collects diagnostics automatically when it opens. Click Refresh at any time to re-collect all data.
- Application - version and .NET runtime.
- Database - connection status, server, database, SQL Server edition and size against the Express limit.
- SQL Server (This Machine) - every local instance and the installed SSMS version.
- License - status, store number, vendor and expiry.
- App Settings - active strategy, cloud sync mode, vendor, POS system and RSC.
- System - machine, Windows build, drive space and memory.
- Refresh - re-collects everything.
Diagnostic Sections
Application
| Field | What It Shows |
|---|---|
| Version | The installed Margin Master version number |
| .NET | The .NET runtime version the application is running on |
Database
| Field | What It Shows |
|---|---|
| Status | Connected / Not Connected |
| Server | SQL Server instance name |
| Database | Database name |
| SQL Version | SQL Server edition and version (e.g., "Express SQL 16 (16.0.1000)") |
| DB Size | Current database size compared to the 10 GB SQL Server Express limit |
Warning: If the DB Size shows 70% or more of the 10 GB Express limit, a warning appears. Above 90%, an error indicator appears. SQL Server Express stops accepting new data when the limit is reached. See SQL Optimization for guidance on reducing database size.
SQL Server (This Machine)
Lists all SQL Server instances installed on the local computer. Also shows the SSMS (SQL Server Management Studio) version:
| SSMS Status | What It Means |
|---|---|
| v19.x — Current ✓ | SSMS is up to date |
| v18.x — Upgrade recommended | An older version is installed; upgrading is recommended for compatibility |
| Not installed | SSMS is not on this computer |
License
| Field | What It Shows |
|---|---|
| Status | Valid or Expired |
| Store Number | The store number this license is assigned to |
| Vendor ID | The vendor this license is for (Ace Hardware, Do It Best, etc.) |
| Expires | License expiration date |
| Last Validated | When the license was last confirmed with the licensing server |
App Settings
| Field | What It Shows |
|---|---|
| Active Strategy | The currently active pricing strategy name |
| Cloud Sync | Modern (RowVersion) or Legacy |
| POS System | Your point-of-sale system type |
| Vendor ID | Your primary vendor type |
| RSC | Your Regional Service Center code |
System
| Field | What It Shows |
|---|---|
| Machine | Computer name |
| Windows | Windows edition and build number |
| C: Drive | Available and total disk space on the C: drive |
| .NET Mem | .NET GC heap memory in use |
Recent Errors
Shows the last 15 error and warning entries from today's application log file. This is the first place to look when something unexpected happened.
If no errors occurred today, this section is empty.
Actions
| Button | What It Does |
|---|---|
| Refresh | Re-collects all diagnostic data |
| Copy to Clipboard | Copies the full diagnostic report as plain text — paste into an email or support ticket |
| Submit to Support | Pre-fills a new support issue with the diagnostic report and opens the issue submission form |
Common Questions
Q: What should I look for first when something is wrong? A: Check Recent Errors first — it shows the actual error messages from today. Then check Database > DB Size if the app seems slow or data isn't saving. Check License > Status if features appear missing.
Q: The DB Size warning is showing. What should I do? A: At 70%, you have time to act. At 90%, data writes may begin failing. Options: delete old import data, restore a smaller backup, or upgrade to SQL Server Standard/Enterprise. See SQL Optimization for step-by-step guidance.
Q: What does "SSMS — Upgrade recommended" mean? A: SQL Server Management Studio is a separate tool for browsing and querying your database. Older versions occasionally have compatibility issues. An upgrade is recommended but not required for Margin Master to function.
Q: How do I send diagnostics to support? A: Click Submit to Support. The diagnostic report is pre-filled into a new support issue. Add a description of what you were doing and click Submit.
